Causal Inference — Insulin Treatment and A1C Outcomes in Hospital Patients

Investigating the causal link between insulin treatment and A1C values using MIMIC-IV EHR data and T-Learner causal estimation — presented at Vector Institute's Causal AI Bootcamp

Presented at Vector Institute Demo Day — Causal AI Bootcamp, June 9, 2023. Authors: Jonathan Erez, Sudhandar Balakrishnan, Doaa Altarawy, Christina Feng, Ali Mahmood, Tzvi Aviv — Loblaw Health Data Products and Services.

Overview

Standard predictive models tell you what will happen — causal models tell you what causes it to happen. In diabetes care, the difference matters: knowing that insulin treatment is associated with lower A1C is less useful than knowing whether insulin treatment causes A1C to decrease, and by how much.

The challenge is confounding. Patient characteristics like age and gender influence both who gets prescribed insulin and what their A1C trajectory looks like — potentially obscuring the true treatment effect. This project applied causal inference methods from Vector Institute’s Causal AI Bootcamp to a real-world EHR dataset to disentangle correlation from causation in diabetes management.

Data

We used MIMIC-IV, a publicly available de-identified electronic health record dataset from a large US academic medical centre (Johnson et al., 2023). From this dataset we extracted:

  • Patients who received at least two A1C tests during their hospital stay
  • The first two A1C measurements per patient
  • Patients were excluded if their two A1C tests were more than 365 days apart
  • We counted the number of insulin medications administered between the two A1C tests

This yielded a cohort of 20,229 patients.

Figure 1 — Patient Characteristics

Figure 1. Age and gender distribution of the 20,229-patient cohort. Mean age: 60, median: 61. The cohort skews older — ~40% are 65+ — consistent with the known demographics of hospital-based diabetes populations. Female patients slightly outnumber males in the 65+ group.

Figure 2 — Insulin Usage by Age and Gender

Figure 2. Percentage of patients using insulin by age group and gender. Total insulin usage: 18.6%. Insulin use rises sharply with age — from ~2% in the 18–34 cohort to 25% in males 65+. Males show consistently higher insulin usage rates than females across all age groups.

These distributions motivate the need for causal analysis: age and gender are confounders that independently influence both insulin prescription likelihood and A1C trajectory. A naive comparison of A1C changes between insulin and non-insulin patients would be biased by this structure.

Figure 3 — Causal Graph and Methodology

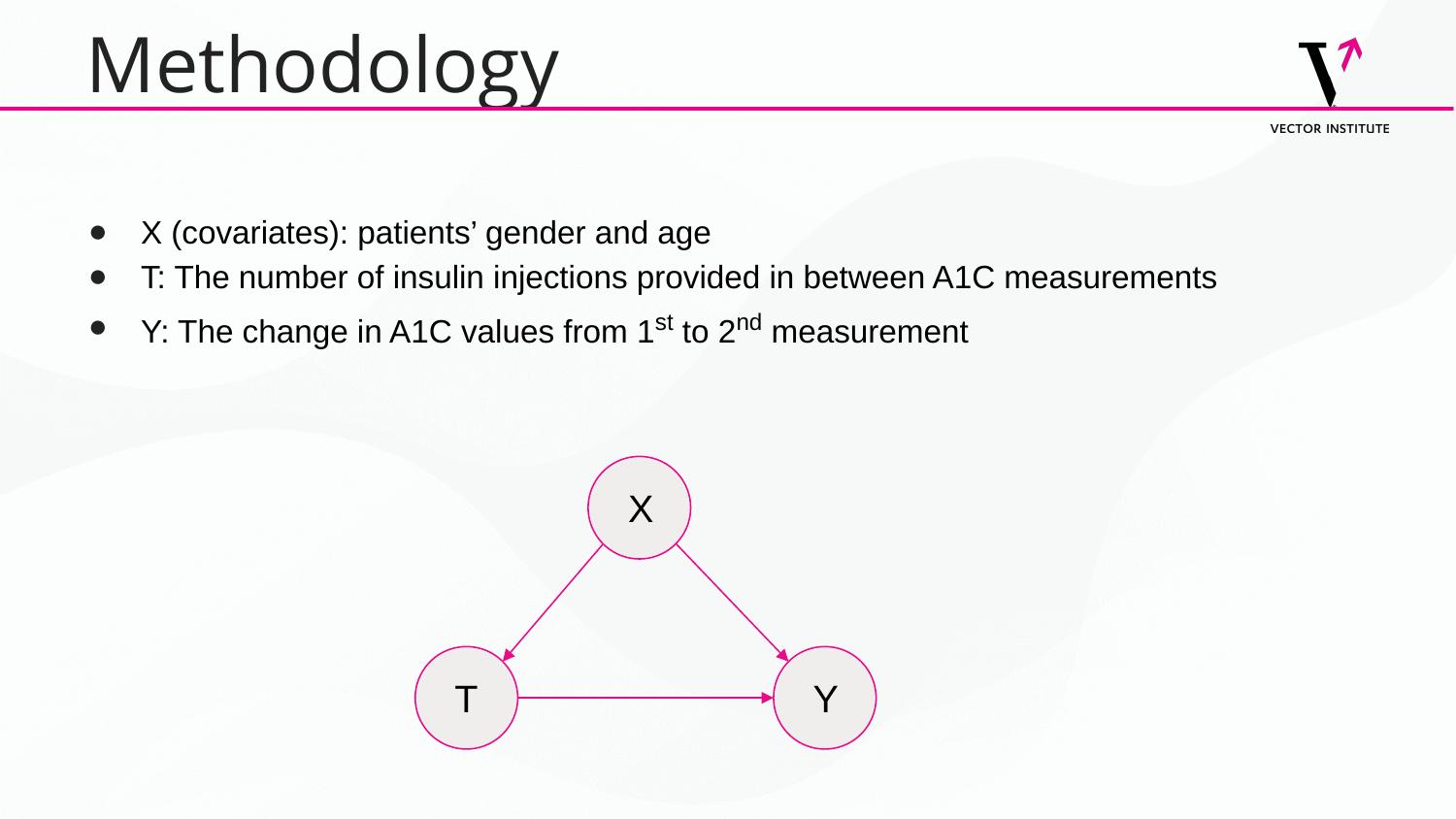

Figure 3. Causal graph depicting the study structure. X (covariates: age and gender) influences both T (treatment: number of insulin injections between A1C measurements) and Y (outcome: change in A1C from first to second measurement). The goal is to estimate the causal effect of T on Y, controlling for X.

Causal Framework

The study uses the potential outcomes framework:

  • X — covariates: patient age and gender
  • T — treatment: number of insulin injections administered between the two A1C measurements
  • Y — outcome: change in A1C value from first to second measurement

The fundamental challenge of causal inference is that counterfactuals are unobservable — we cannot observe what a patient’s A1C would have been had they received a different treatment. This means the standard PEHE (Precision in Estimation of Heterogeneous Effects) metric cannot be computed directly.

Implementation

To work around the counterfactual problem, we ran nuisance models to obtain a PEHE-like estimation, then applied a T-Learner estimator with a Random Forest as the base learner. The T-Learner trains separate outcome models for treated and control units, then estimates individual treatment effects by comparing their predictions.

Figure 4 — Model Results

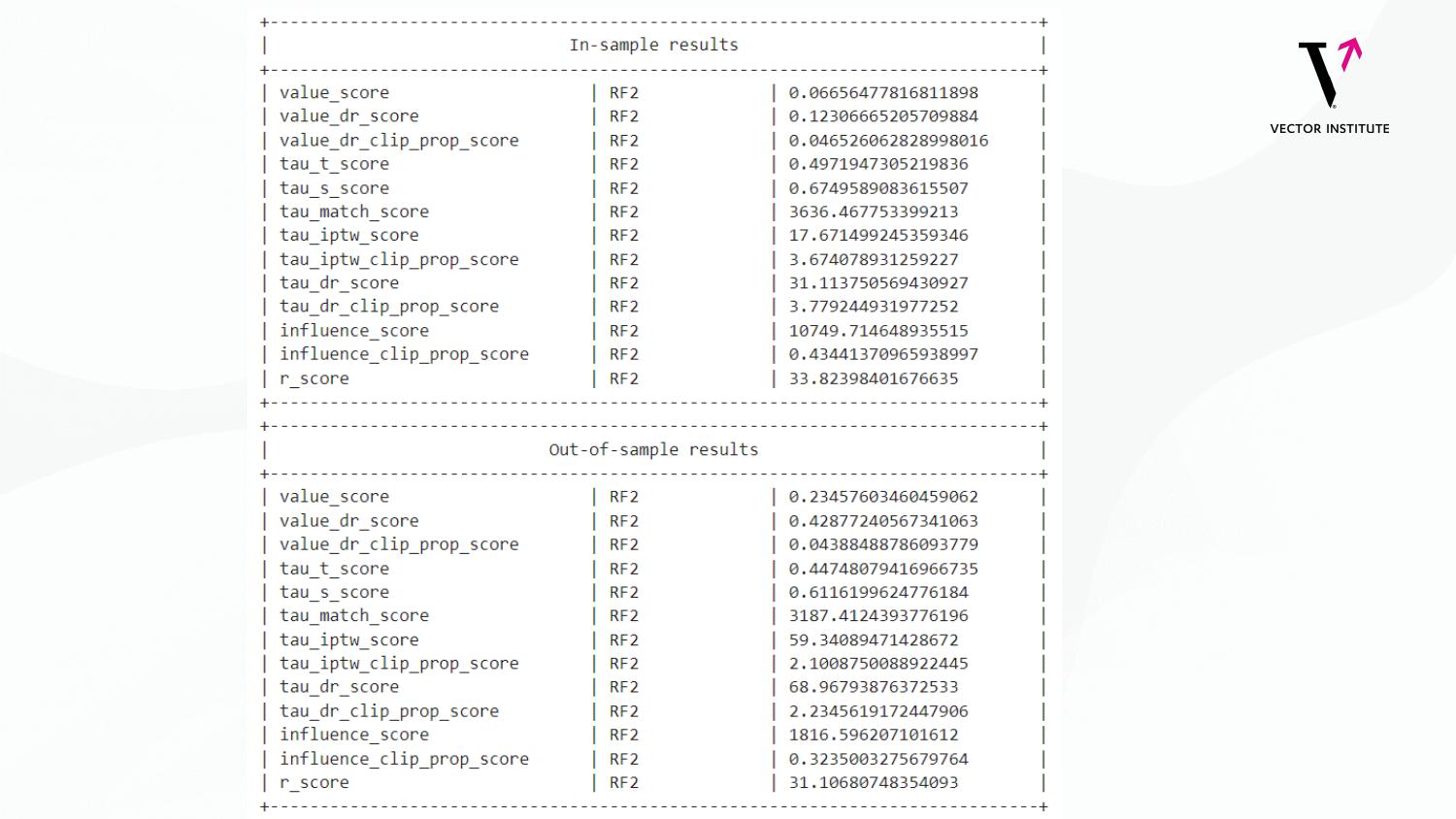

Figure 4. In-sample and out-of-sample causal estimation results using Random Forest (RF2). Key metrics include value scores, tau estimates across multiple estimators (T, S, match, IPTW, DR), influence scores, and R-scores. The value_dr_clip_prop_score of ~0.04 in-sample and ~0.04 out-of-sample indicates stable doubly-robust estimation.

The doubly-robust clipped propensity score (value_dr_clip_prop_score) — one of the most reliable estimators in the presence of confounding — shows consistent performance in-sample (0.047) and out-of-sample (0.044), suggesting the causal effect estimates are stable and not driven by propensity score extremes.

Conclusions and Impact

This project demonstrated that causal inference methods can be applied to real-world pharmacy and EHR data to move beyond association toward actionable treatment effect estimates. Key takeaways:

  • Age and gender are meaningful confounders in insulin prescription patterns that must be accounted for in any analysis of treatment efficacy
  • The T-Learner with Random Forest produces stable causal effect estimates on this dataset, with consistent in-sample and out-of-sample performance
  • The doubly-robust estimator provides a reliable hedge against model misspecification in either the outcome or propensity model

Beyond the technical results, the project built organizational capability: applying and disseminating causal inference methodology within the data science team, using a concrete and clinically grounded use case.

Future Directions

  • Expand covariates X beyond age and gender to include comorbidities, prior medication history, and lab values
  • Causal discovery analysis as a prerequisite to validate the assumed graph structure
  • Extend to heterogeneous treatment effect estimation to identify patient subgroups who benefit most from insulin therapy
  • Evaluate epsilon and hyperparameter sensitivity for the nuisance models
